Fenix Automation

Ekval Oy:n valikoimista löytyy Fenix Automationin kuljetin järjestelmät, Odd form ladontasolut, laser merkkaus solut sekä muita automaatio järjestelmiä.

Board Handling

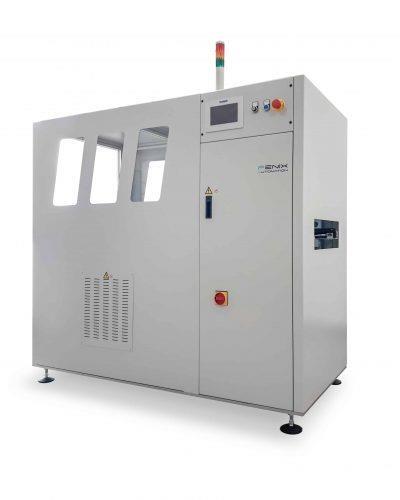

Line loaders 3-5 racks HL-00 /Line unloaders 3-5 racks HU-00

HL-00 Unloads PCBs from a rack and loads them onto a production line
• R to L or L to R flow direction
• User interface by touch screen
• Programmable unloading pitch
• Automatic rack handlers
• Full racks in lower conveyor level
• Empty racks in the upper conveyor level

HU-00 Unloads PCBs from a production line for loading into a rack
• R to L or L to R flow direction
• User interface by touch screen
• Programmable unloading pitch
• Automatic rack handlers
• 500 mm infeed conveyor
• Full racks in the lower conveyor level
• Empty racks in the upper conveyor level

Technical Features

- In – Out SMEMA Interface

- ESD Safety Design CE Compliance

- Power Supply - 230Vac 50/Hz 1A Air pressure 6 bar

- Weight 250 kg

PCB & rack specification

- Max/Min PCB width 500 mm/100 mm

- Max PCB length 457 mm

- Max rack dimensions (L535mm W530mm H575mm)

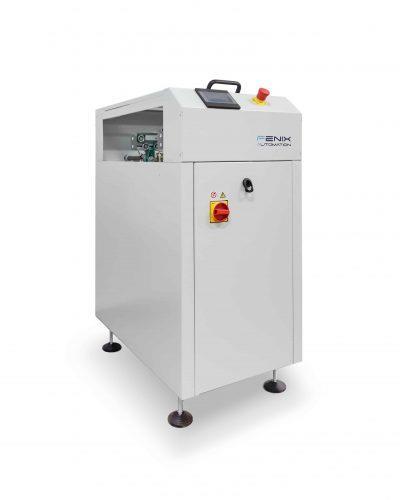

Conveyors HC-00

PCB Conveyors
Transports boards between different processing machines
• R to L or L to R flow direction
• Pass through function
• User interface by touch screen
• Safety cover with safety sensors
• Standard length 500, 1000, 1500 mm
• Standard motorized segment 500 mm

Technical Features

- In – Out SMEMA Interface

- ESD Safety Design CE Compliance

- Flat Belt (carrying edge 3 mm)

- Power Supply - 230Vac 50/Hz 1A

- Std conveyor speed 12 m/min

- Electric Width Adjustment (EWA)

- Weight 60 kg

PCB specification

- Max/Min PCB width 500 mm/60 mm

- Max PCB length 457 mm

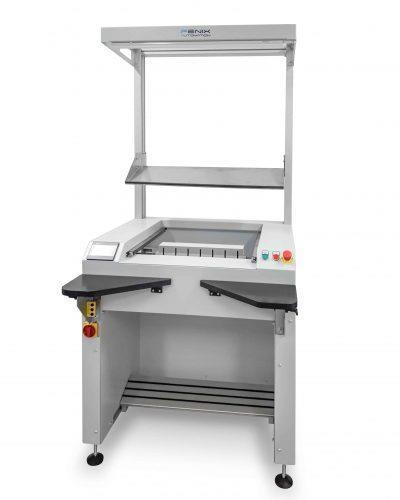

Workstation HW-00
In line work station for inline manual processing
• R to L or L to R flow direction
• Pass through function
• User interface by touch screen
• Standard length 1000, 1500 mm
• Standard motorized segment 500 mm

Technical Features

- In – Out SMEMA Interface

- ESD Safety Design CE Compliance

- Flat Belt (carrying edge 3 mm)

- Power Supply - 230Vac 50/Hz 1A

- Std conveyor speed 12 m/min

- Electric Width Adjustment (EWA)

- Weight 150 kg

PCB specification

- Max/Min PCB width 500 mm/60 mm

- Max PCB length 457mm
